Every supported barcode symbology drawn into a single document, linear, postal, GS1, and two-dimensional.

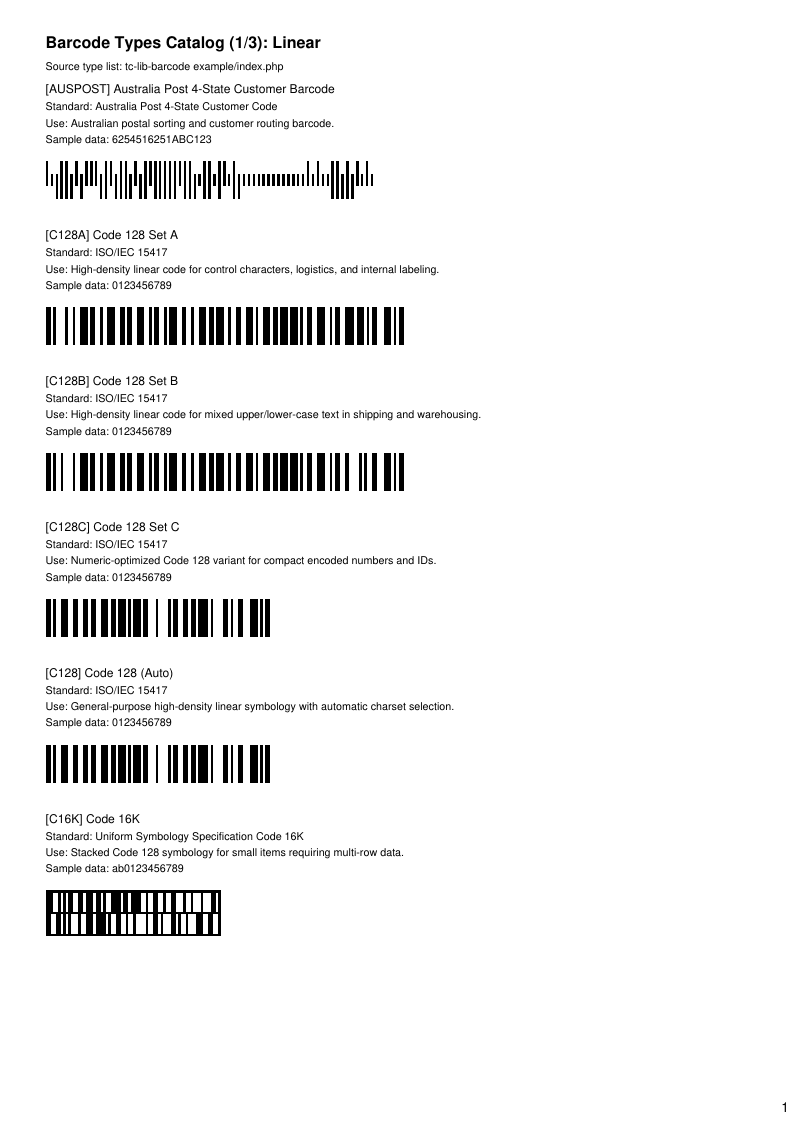

- Rendered PDF: E020_barcodes.pdf
- PHP source: E020_barcodes.phps
- All examples: /examples/
- Guide: tc-lib-barcode
- One page per symbology, with input ranges and SVG output: Linear, 2D, Postal
Source Code
<?php
declare(strict_types=1);
/**
* E020_barcodes.php
*
* @since 2026-04-26
* @category Library
* @package Pdf
* @author Nicola Asuni <info@tecnick.com>
* @copyright 2002-2026 Nicola Asuni - Tecnick.com LTD
* @license https://www.gnu.org/copyleft/lesser.html GNU-LGPL v3 (see LICENSE)
* @link https://github.com/tecnickcom/tc-lib-pdf
*
* This file is part of tc-lib-pdf software library.
*/
// NOTE: local file reads (images, fonts, attachments) are restricted to an allowlist of
// trusted paths that covers this package tree, so run the examples in place. To read assets
// from other locations, list them in the 'allowedPaths' entry of the fileOptions constructor
// parameter (see E047_remote_resources_security.php).
// NOTE: run make fonts in the project root to generate the dependencies and example fonts.
// NOTE: this library encodes the data it is given. Several formats carry a number that only
// its registration body can issue, so a symbol is valid in its scheme only once that number
// has been obtained: GS1 member organisations issue the company prefix used by EAN, UPC,
// ITF-14, GS1-128, SSCC-18, GS1-14 and GS1 DataBar; HIBCC assigns the Labeler Identification
// Code used by HIBC39, HIBC128, HIBCDM, HIBCQR and HIBCAZ; Royal Mail issues the Supply Chain
// ID carried by MAILMARK; IFA GmbH allocates the PZN Pharmazentralnummer; Deutsche Post DHL
// assigns the customer number and street codes of IDENTCODE and LEITCODE; AIFA assigns the
// Italian AIC number encoded by C32.
// NOTE: the symbology names below identify the encoded formats and belong to their respective
// owners: QR Code (DENSO WAVE INCORPORATED); GS1, GS1-128 and GS1 DataBar (GS1 AISBL);
// Mailmark (Royal Mail Group Ltd); Intelligent Mail (United States Postal Service);
// PHARMA-CODE (Laetus GmbH); Telepen (S.B. Electronic Systems Ltd); HIBC and HIBCC (Health
// Industry Business Communications Council); KIX (PostNL); Identcode and Leitcode (Deutsche
// Post DHL). They are used descriptively; no affiliation with or endorsement by their owners
// is claimed or implied. GS1 licenses the claims necessary to implement its standards under
// its IP Policy (https://www.gs1.org/standards/ip) to GS1 members and to the participants of
// the work group that developed the standard, rather than to the public at large.
// autoloader when using Composer
require __DIR__ . '/../vendor/autoload.php';
// define fonts directory
\define('K_PATH_FONTS', \realpath(__DIR__ . '/../vendor/tecnickcom/tc-lib-pdf-font/target/fonts'));
// main TCPDF object
$pdf = new \Com\Tecnick\Pdf\Tcpdf(
unit: \Com\Tecnick\Pdf\Page\Unit::Millimeter,
isunicode: true,
subsetfont: false,
compress: true,
mode: \Com\Tecnick\Pdf\PdfConformance::None,
objEncrypt: null,
);
$pdf->setCreator('tc-lib-pdf');
$pdf->setAuthor('Nicola Asuni');
$pdf->setSubject('tc-lib-pdf example: 020');
$pdf->setTitle('All Barcode Types Example');
$pdf->setKeywords('TCPDF tc-lib-pdf example barcodes 1D 2D');
$pdf->setPDFFilename('020_barcodes.pdf');
$pdf->setViewerPreferences(['DisplayDocTitle' => true]);
$pdf->enableDefaultPageContent();
$titlefont = $pdf->font->insert($pdf->pon, 'helvetica', 'B', 12);
$textfont = $pdf->font->insert($pdf->pon, 'helvetica', '', 9);
$smallfont = $pdf->font->insert($pdf->pon, 'helvetica', '', 8);
$style = [
'lineWidth' => 0,
'lineCap' => 'butt',
'lineJoin' => 'miter',
'dashArray' => [],
'dashPhase' => 0,
'lineColor' => 'black',
'fillColor' => 'black',
];
$linear = [
[
'type' => 'AUSPOST',
'code' => '6254516251ABC123',
'name' => 'Australia Post 4-State Customer Barcode',
'standard' => 'Australia Post 4-State Customer Code',
'use' => 'Australian postal sorting and customer routing barcode.',
],
[
'type' => 'C128A',
'code' => '0123456789',
'name' => 'Code 128 Set A',
'standard' => 'ISO/IEC 15417',
'use' => 'High-density linear code for control characters, logistics, and internal labeling.',
],
[
'type' => 'C128B',
'code' => '0123456789',
'name' => 'Code 128 Set B',
'standard' => 'ISO/IEC 15417',
'use' => 'High-density linear code for mixed upper/lower-case text in shipping and warehousing.',
],
[
'type' => 'C128C',
'code' => '0123456789',
'name' => 'Code 128 Set C',
'standard' => 'ISO/IEC 15417',
'use' => 'Numeric-optimized Code 128 variant for compact encoded numbers and IDs.',
],
[
'type' => 'C128',
'code' => '0123456789',
'name' => 'Code 128 (Auto)',
'standard' => 'ISO/IEC 15417',
'use' => 'General-purpose high-density linear symbology with automatic charset selection.',
],
[
'type' => 'C16K',
'code' => 'ab0123456789',
'name' => 'Code 16K',
'standard' => 'Uniform Symbology Specification Code 16K',
'use' => 'Stacked Code 128 symbology for small items requiring multi-row data.',
],
[
'type' => 'C32',
'code' => '012345676',
'name' => 'Code 32',
'standard' => 'Italian Pharmacode (IMH, radix 32)',
'use' => 'Italian pharmaceutical product coding derived from Code 39.',
],
[
'type' => 'C49',
'code' => 'MULTIPLE ROWS IN CODE 49',
'name' => 'Code 49',
'standard' => 'ANSI/AIM BC6',
'use' => 'Multi-row stacked symbology for compact alphanumeric data.',
],
[
'type' => 'C39E+',
'code' => '0123456789',
'name' => 'Code 39 Extended + checksum',
'standard' => 'ANSI MH10.8M / USS Code 39',
'use' => 'Extended Code 39 character support with checksum for asset tags and internal IDs.',
],
[
'type' => 'C39E',
'code' => '0123456789',
'name' => 'Code 39 Extended',
'standard' => 'ANSI MH10.8M / USS Code 39',
'use' => 'Expanded Code 39 set used for industrial and inventory labels.',
],
[
'type' => 'C39+',
'code' => '0123456789',
'name' => 'Code 39 + checksum',
'standard' => 'ANSI MH10.8M / USS Code 39',
'use' => 'Code 39 with checksum to improve scan reliability in production environments.',
],
[
'type' => 'C39',
'code' => '0123456789',
'name' => 'Code 39',
'standard' => 'ANSI MH10.8M-1983 (USD-3 / 3 of 9)',
'use' => 'Classic alphanumeric barcode used for parts, equipment, and non-retail logistics.',
],
[
'type' => 'C93',
'code' => '0123456789',
'name' => 'Code 93',
'standard' => 'USS-93',
'use' => 'Compact linear code often used where Code 39 would be too wide.',
],
[
'type' => 'CODABAR',
'code' => '0123456789',
'name' => 'Codabar',
'standard' => 'NW-7 (legacy)',
'use' => 'Legacy symbology used in libraries, blood banks, and some healthcare systems.',
],
[
'type' => 'CODE11',
'code' => '0123456789',
'name' => 'Code 11',
'standard' => 'USD-8 (legacy)',
'use' => 'Numeric code widely used in telecommunications and labeling of equipment.',
],
[
'type' => 'DATABAR',
'code' => '09501101530010',
'name' => 'GS1 DataBar Omnidirectional',
'standard' => 'ISO/IEC 24724',
'use' => 'GS1 item identification scannable from any orientation at retail point of sale.',
],
[
'type' => 'DATABAREXP',
'code' => '(01)90614141000015(3202)000150',
'name' => 'GS1 DataBar Expanded',
'standard' => 'ISO/IEC 24724',
'use' => 'Encodes GS1 Application Identifiers such as weight, price, and dates.',
],
[
'type' => 'DATABAREXPSTACK',
'code' => '(01)90614141000015(3202)000150',
'name' => 'GS1 DataBar Expanded Stacked',
'standard' => 'ISO/IEC 24724',
'use' => 'Stacked form of DataBar Expanded for narrow label areas.',
],
[
'type' => 'DATABARLIMITED',
'code' => '15012345678907',
'name' => 'GS1 DataBar Limited',
'standard' => 'ISO/IEC 24724',
'use' => 'Item identification for small retail packages not scanned omnidirectionally.',
],
[
'type' => 'DATABARSTACK',
'code' => '00012345678905',
'name' => 'GS1 DataBar Stacked',
'standard' => 'ISO/IEC 24724',
'use' => 'Two-row DataBar for very small items such as loose produce.',
],
[
'type' => 'DATABARSTACKOMNI',
'code' => '00034567890125',
'name' => 'GS1 DataBar Stacked Omnidirectional',
'standard' => 'ISO/IEC 24724',
'use' => 'Two-row omnidirectional DataBar for point-of-sale scanning of small items.',
],
[
'type' => 'DATABARTRUNC',
'code' => '00012345678905',
'name' => 'GS1 DataBar Truncated',
'standard' => 'ISO/IEC 24724',
'use' => 'Reduced-height DataBar for non-retail item marking.',
],
[
'type' => 'EAN13',
'code' => '0123456789',
'name' => 'EAN-13',
'standard' => 'GS1 EAN/UPC',
'use' => 'Global retail product identification barcode used on consumer goods.',
],
[
'type' => 'EAN2',
'code' => '12',
'name' => 'EAN 2-digit add-on',
'standard' => 'GS1 EAN/UPC add-on',
'use' => 'Supplementary add-on commonly used to encode issue numbers for periodicals.',
],
[
'type' => 'EAN5',
'code' => '12345',
'name' => 'EAN 5-digit add-on',
'standard' => 'GS1 EAN/UPC add-on',
'use' => 'Supplementary add-on often used for suggested retail pricing on books/magazines.',
],
[
'type' => 'EAN8',
'code' => '1234567',
'name' => 'EAN-8',
'standard' => 'GS1 EAN/UPC',
'use' => 'Compact retail barcode for very small consumer packages.',
],
[
'type' => 'GS114',
'code' => '9501101020917',
'name' => 'GS1-14 / EAN-14 / SCC-14',
'standard' => 'GS1 General Specifications (GS1-128 with AI 01)',
'use' => 'Trade item grouping identifier (GTIN-14) for cases and pallets.',
],
[
'type' => 'GS1128',
'code' => '(01)09501101020917(10)AB-123',
'name' => 'GS1-128',
'standard' => 'ISO/IEC 15417 with GS1 Application Identifiers',
'use' => 'Supply-chain data carrier for batch, expiry, and logistics attributes.',
],
[
'type' => 'HIBC128',
'code' => '+A123BJC5D6E71',
'name' => 'HIBC in Code 128',
'standard' => 'ANSI/HIBC 2.6 and ANSI/HIBC 1.3',
'use' => 'Health industry supplier labeling of medical products in Code 128.',
],
[
'type' => 'HIBC39',
'code' => '+A123BJC5D6E71',
'name' => 'HIBC in Code 39',
'standard' => 'ANSI/HIBC 2.6 and ANSI/HIBC 1.3',
'use' => 'Health industry supplier labeling of medical products in Code 39.',
],
[
'type' => 'I25+',
'code' => '0123456789',
'name' => 'Interleaved 2 of 5 + checksum',
'standard' => 'ITF / Interleaved 2 of 5',
'use' => 'Numeric shipping and carton labels with checksum for improved integrity.',
],
[
'type' => 'I25',
'code' => '0123456789',
'name' => 'Interleaved 2 of 5',
'standard' => 'ITF / Interleaved 2 of 5',
'use' => 'Numeric-only barcode frequently used on corrugated packaging.',
],
[
'type' => 'IDENTCODE',
'code' => '563102430313',
'name' => 'Deutsche Post Identcode',
'standard' => 'Deutsche Post Identcode (Interleaved 2 of 5 based)',
'use' => 'German parcel identification for Deutsche Post shipments.',
],
[
'type' => 'IMB',
'code' => '01234567094987654321-01234567891',
'name' => 'Intelligent Mail Barcode',
'standard' => 'USPS-B-3200',
'use' => 'USPS mail sorting and tracking barcode for letters and flats.',
],
[
'type' => 'IMBPRE',
'code' => 'AADTFFDFTDADTAADAATFDTDDAAADDTDTTDAFADADDDTFFFDDTTTADFAAADFTDAADA',
'name' => 'IMB pre-processed',
'standard' => 'USPS Intelligent Mail (pre-encoded pattern)',
'use' => 'Feeds a precomputed IMB state pattern when encoding is prepared upstream.',
],
[
'type' => 'ITF14',
'code' => '09312345678907',
'name' => 'ITF-14',
'standard' => 'GS1 General Specifications (ITF-14)',
'use' => 'GTIN-14 marking on corrugated cartons and outer packaging, with bearer bars.',
],
[
'type' => 'JPPOST',
'code' => '910-00673-80-25J1-2B',
'name' => 'Japan Post Customer Barcode',
'standard' => 'Japan Post Customer Barcode (4-state)',
'use' => 'Japanese postal address and routing barcode.',
],
[
'type' => 'KIX',
'code' => '0123456789',
'name' => 'KIX',
'standard' => 'PostNL KIX (4-state)',
'use' => 'Dutch postal customer indexing and routing barcode.',
],
[
'type' => 'LEITCODE',
'code' => '21348075016401',
'name' => 'Deutsche Post Leitcode',
'standard' => 'Deutsche Post Leitcode (Interleaved 2 of 5 based)',
'use' => 'German postal routing code for destination sorting.',
],
[
'type' => 'LOGMARS',
'code' => '12345/ABCDE',
'name' => 'LOGMARS',
'standard' => 'MIL-STD-1189B (Code 39 profile)',
'use' => 'US military logistics marking and asset labeling.',
],
[
'type' => 'MAILMARK',
'code' => '41038422416563762EF61AH8T ',
'name' => 'Royal Mail Mailmark',
'standard' => 'Royal Mail Mailmark 4-state (types C and L)',
'use' => 'UK mail tracking and reporting barcode.',
],
[
'type' => 'MSI+',
'code' => '0123456789',
'name' => 'MSI + checksum',
'standard' => 'MSI Plessey (variant)',
'use' => 'Inventory-oriented numeric coding with checksum for warehouse workflows.',
],
[
'type' => 'MSI',
'code' => '0123456789',
'name' => 'MSI',
'standard' => 'MSI Plessey (variant)',
'use' => 'Numeric barcode used in stock control and shelf labeling.',
],
[
'type' => 'PHARMA2T',
// the two-track Pharmacode encodes an integer between 4 and 64570080
'code' => '12345678',
'name' => 'Pharmacode two-track',
'standard' => 'Pharmacode (2-track variant)',
'use' => 'Pharmaceutical package line verification using two-track bar patterns.',
],
[
'type' => 'PHARMA',
// the Pharmacode encodes an integer between 3 and 131070
'code' => '123456',
'name' => 'Pharmacode',
'standard' => 'Laetus Pharmacode',
'use' => 'Pharmaceutical packaging control on production lines.',
],
[
'type' => 'PLANET',
'code' => '0123456789',
'name' => 'PLANET',
'standard' => 'USPS PLANET (legacy)',
'use' => 'Legacy USPS mail tracking and routing barcode.',
],
[
'type' => 'PLESSEY',
'code' => '0123456789ABCDEF',
'name' => 'Plessey Code',
'standard' => 'Plessey (legacy)',
'use' => 'Legacy hexadecimal symbology used for retail shelf labeling.',
],
[
'type' => 'POSTNET',
'code' => '0123456789',
'name' => 'POSTNET',
'standard' => 'USPS POSTNET (legacy)',
'use' => 'Legacy USPS ZIP and delivery-point encoding for mail sorting.',
],
[
'type' => 'PZN',
'code' => '2758089',
'name' => 'PZN',
'standard' => 'IFA Pharmazentralnummer (Code 39 based)',
'use' => 'German pharmaceutical central product number for medicines.',
],
[
'type' => 'RMS4CC',
'code' => '0123456789',
'name' => 'RMS4CC',
'standard' => 'Royal Mail 4-State Customer Code',
'use' => 'UK postal addressing and sorting barcode.',
],
[
'type' => 'S25+',
'code' => '0123456789',
'name' => 'Standard 2 of 5 + checksum',
'standard' => 'Standard 2 of 5 (industrial)',
'use' => 'Numeric industrial barcode with checksum for improved reliability.',
],
[
'type' => 'S25',
'code' => '0123456789',
'name' => 'Standard 2 of 5',
'standard' => 'Standard 2 of 5 (industrial)',
'use' => 'Legacy numeric industrial labeling barcode.',
],
[
'type' => 'S25DATALOGIC',
'code' => '0123456789',
'name' => '2 of 5 Datalogic',
'standard' => '2 of 5 Datalogic (China Post Code)',
'use' => 'Numeric variant used by China Post and legacy Datalogic systems.',
],
[
'type' => 'S25IATA',
'code' => '0123456789',
'name' => '2 of 5 IATA',
'standard' => '2 of 5 IATA (Computer Identics 2 of 5)',
'use' => 'Air cargo and baggage handling numeric barcode.',
],
[
'type' => 'S25MATRIX',
'code' => '0123456789',
'name' => '2 of 5 Matrix',
'standard' => '2 of 5 Matrix',
'use' => 'Numeric symbology denser than Standard 2 of 5 for industrial labels.',
],
[
'type' => 'SSCC18',
'code' => '39501101020917171',
'name' => 'SSCC-18',
'standard' => 'GS1 General Specifications (GS1-128 with AI 00)',
'use' => 'Serial Shipping Container Code identifying logistic units.',
],
[
'type' => 'TELEPEN',
'code' => 'ABC123',
'name' => 'Telepen',
'standard' => 'Telepen (full ASCII)',
'use' => 'Library and academic sector symbology encoding the full ASCII set.',
],
[
'type' => 'UPCA',
'code' => '72527273070',
'name' => 'UPC-A',
'standard' => 'GS1 EAN/UPC',
'use' => 'Retail barcode primarily used in North America.',
],
[
'type' => 'UPCE',
'code' => '725277',
'name' => 'UPC-E',
'standard' => 'GS1 EAN/UPC',
'use' => 'Compressed UPC format for small retail packages.',
],
];
$square = [
[
'type' => 'LRAW',
'code' => '0101010101',
'name' => '1D raw mode',
'standard' => 'Library raw mode (non-standard)',
'use' => 'Debug/test mode that directly renders provided 1D bit patterns.',
],
[
'type' => 'SRAW',
'code' => '0101,1010',
'name' => '2D raw mode',
'standard' => 'Library raw mode (non-standard)',
'use' => 'Debug/test mode that directly renders provided 2D bit grids.',
],
[
'type' => 'AZTEC',
'code' => 'ABCDabcd01234',
'name' => 'Aztec Code',
'standard' => 'ISO/IEC 24778:2008',
'use' => 'Compact 2D code used for tickets, transport passes, and mobile scans.',
],
[
'type' => 'AZTEC,50,A,A',
'code' => 'ABCDabcd01234',
'name' => 'Aztec Code (with parameters)',
'standard' => 'ISO/IEC 24778:2008',
'use' => 'Aztec variant with explicit encoder parameters for size/error tuning.',
],
[
'type' => 'AZTECRUNE',
'code' => '125',
'name' => 'Aztec Rune',
'standard' => 'ISO/IEC 24778:2008 Annex A',
'use' => 'Minimal Aztec symbol encoding a single value from 0 to 255.',
],
[
'type' => 'PDF417',
'code' => '0123456789',
'name' => 'PDF417',
'standard' => 'ISO/IEC 15438:2006',
'use' => 'Stacked 2D barcode used in transport, identity, and archival workflows.',
],
[
'type' => 'PDF417C',
'code' => '0123456789',
'name' => 'Compact PDF417',
'standard' => 'ISO/IEC 15438:2006 (compact/truncated)',
'use' => 'Truncated PDF417 without right row indicators for narrow print areas.',
],
[
'type' => 'QRCODE',
'code' => '0123456789',
'name' => 'QR Code',
'standard' => 'ISO/IEC 18004',
'use' => 'Widely used 2D code for URLs, mobile interactions, and consumer scanning.',
],
[
'type' => 'QRCODE,H,ST,0,0',
'code' => 'abcdefghijklmnopqrstuvwxy0123456789',
'name' => 'QR Code (with parameters)',
'standard' => 'ISO/IEC 18004',
'use' => 'QR variant with explicit error correction and encoding parameters.',
],
[
'type' => 'MICROQR',
'code' => '0123456789',
'name' => 'Micro QR Code',
'standard' => 'ISO/IEC 18004',
'use' => 'Reduced-size QR variant for small marking areas and short payloads.',
],
[
'type' => 'MICROQR,M,4,AN',
'code' => 'ABCDEFGHIJKLMNOPQR',
'name' => 'Micro QR Code (with parameters)',
'standard' => 'ISO/IEC 18004',
'use' => 'Micro QR variant with explicit error correction, version, and encoding mode.',
],
[
'type' => 'HANXIN',
'code' => '0123456789',
'name' => 'Han Xin Code',
'standard' => 'GB/T 21049, ISO/IEC 20830',
'use' => 'Chinese national 2D code for logistics, product identification, and Chinese text.',
],
[
'type' => 'HANXIN,L3,10,2',
'code' => '1234567890ABCDEFGabcdefg,Han Xin Code',
'name' => 'Han Xin Code (with parameters)',
'standard' => 'GB/T 21049, ISO/IEC 20830',
'use' => 'Han Xin variant with explicit error correction level, symbol version, and mask pattern.',
],
[
'type' => 'HIBCAZ',
'code' => '+A123BJC5D6E71',
'name' => 'HIBC in Aztec Code',
'standard' => 'ANSI/HIBC 2.6 and ANSI/HIBC 1.3',
'use' => 'Health industry supplier labeling of medical products in Aztec Code.',
],
[
'type' => 'HIBCDM',
'code' => '+A123BJC5D6E71',
'name' => 'HIBC in Data Matrix',
'standard' => 'ANSI/HIBC 2.6 and ANSI/HIBC 1.3',
'use' => 'Health industry supplier labeling of medical products in Data Matrix.',
],
[
'type' => 'HIBCQR',
'code' => '+A123BJC5D6E71',
'name' => 'HIBC in QR Code',
'standard' => 'ANSI/HIBC 2.6 and ANSI/HIBC 1.3',
'use' => 'Health industry supplier labeling of medical products in QR Code.',
],
[
'type' => 'DATAMATRIX',
'code' => '0123456789',
'name' => 'Data Matrix (square)',
'standard' => 'ISO/IEC 16022',
'use' => 'Compact 2D marking used in electronics, medical devices, and manufacturing.',
],
[
'type' => 'DATAMATRIX,R',
'code' => '0123456789012345678901234567890123456789',
'name' => 'Data Matrix (rectangular)',
'standard' => 'ISO/IEC 16022',
'use' => 'Rectangular Data Matrix for narrow labels and constrained print areas.',
],
[
'type' => 'DATAMATRIX,S,GS1',
'code' => \chr(232) . '01095011010209171719050810ABCD1234' . \chr(232) . '2110',
'name' => 'GS1 Data Matrix (square)',
'standard' => 'ISO/IEC 16022 with GS1 AIs',
'use' => 'GS1-compliant 2D code for regulated product IDs and traceability.',
],
[
'type' => 'DATAMATRIX,R,GS1',
'code' => \chr(232) . '01095011010209171719050810ABCD1234' . \chr(232) . '2110',
'name' => 'GS1 Data Matrix (rectangular)',
'standard' => 'ISO/IEC 16022 with GS1 AIs',
'use' => 'Rectangular GS1 Data Matrix for compact traceability labels.',
],
[
'type' => 'DMRE',
'code' => 'A1B2C3D4E5F6G7H8I9J0K1L2',
'name' => 'Data Matrix Rectangular Extension',
'standard' => 'ISO/IEC 21471',
'use' => 'Extra rectangular symbol sizes for marking thin parts and narrow labels.',
],
[
'type' => 'DMRE,GS1',
'code' => \chr(232) . '01095011010209171719050810ABCD1234' . \chr(232) . '2110',
'name' => 'GS1 Data Matrix Rectangular Extension',
'standard' => 'ISO/IEC 21471 with GS1 AIs',
'use' => 'GS1-compliant rectangular extension for traceability on narrow labels.',
],
[
'type' => 'DMRE,N,ASCII,8x144',
'code' => 'A1B2C3D4E5F6G7H8I9J0K1L2',
'name' => 'Data Matrix Rectangular Extension 8x144',
'standard' => 'ISO/IEC 21471',
'use' => 'Rectangular extension with an explicit symbol size and encoding mode.',
],
];
// notices from tc-lib-barcode README.md
$notices = <<<'EOD'
<style>
h1 { font-size: 12pt; }
h2 { font-size: 10pt; }
p { font-size: 8pt; }
table { font-size: 8pt; }
th { text-align: left; }
</style>
<h1>Barcode Types Catalog (3/3): Registration Bodies and Trademarks</h1>
<p>Source: tc-lib-barcode README.md</p>
<h2>Identifiers issued by a registration body</h2>
<p>The library encodes the data it is given. Several formats carry a number that only its
registration body can issue, so a symbol is valid in its scheme only once that number has been
obtained.</p>
<table border="1" cellpadding="3" cellspacing="0" width="100%">
<tr>
<th width="35%" bgcolor="#eeeeee">Format</th>
<th width="65%" bgcolor="#eeeeee">Issued by</th>
</tr>
<tr>
<td>EAN, UPC, ITF-14, GS1-128, SSCC-18, GS1-14, GS1 DataBar</td>
<td>a GS1 member organisation, which issues the company prefix</td>
</tr>
<tr>
<td>HIBC39, HIBC128, HIBCDM, HIBCQR, HIBCAZ</td>
<td>HIBCC, which assigns the Labeler Identification Code</td>
</tr>
<tr>
<td>MAILMARK</td>
<td>Royal Mail, which issues the Supply Chain ID carried in the barcode</td>
</tr>
<tr>
<td>PZN</td>
<td>IFA GmbH, which allocates the Pharmazentralnummer</td>
</tr>
<tr>
<td>IDENTCODE, LEITCODE</td>
<td>Deutsche Post DHL, which assigns the customer number and the street codes</td>
</tr>
<tr>
<td>C32</td>
<td>AIFA, which assigns the Italian AIC number</td>
</tr>
</table>
<h2>Trademarks</h2>
<p>The names below identify the symbologies this library encodes and belong to their respective
owners. They are used descriptively; no affiliation with or endorsement by their owners is
claimed or implied.</p>
<table border="1" cellpadding="3" cellspacing="0" width="100%">
<tr>
<th width="35%" bgcolor="#eeeeee">Name</th>
<th width="65%" bgcolor="#eeeeee">Owner</th>
</tr>
<tr>
<td>QR Code</td>
<td>DENSO WAVE INCORPORATED</td>
</tr>
<tr>
<td>GS1, GS1-128, GS1 DataBar</td>
<td>GS1 AISBL</td>
</tr>
<tr>
<td>Mailmark</td>
<td>Royal Mail Group Ltd</td>
</tr>
<tr>
<td>Intelligent Mail</td>
<td>United States Postal Service</td>
</tr>
<tr>
<td>PHARMA-CODE</td>
<td>Laetus GmbH</td>
</tr>
<tr>
<td>Telepen</td>
<td>S.B. Electronic Systems Ltd</td>
</tr>
<tr>
<td>HIBC, HIBCC</td>
<td>Health Industry Business Communications Council</td>
</tr>
<tr>
<td>KIX</td>
<td>PostNL</td>
</tr>
<tr>
<td>Identcode, Leitcode</td>
<td>Deutsche Post DHL</td>
</tr>
</table>
<p>GS1 licenses the claims necessary to implement its standards under its IP Policy
(https://www.gs1.org/standards/ip), to GS1 members and to the participants of the work group
that developed the standard, rather than to the public at large.</p>
EOD;
function formatSampleDataForText(string $sample): string
{
$out = '';
$bytes = \unpack('C*', $sample);
if ($bytes === false) {
return '';
}
foreach ($bytes as $byte) {
if ($byte === 232) {
$out .= '<FNC1>';
continue;
}
if ($byte >= 32 && $byte <= 126) {
$out .= \chr($byte);
continue;
}
$out .= '\\x' . \strtoupper(\str_pad((string) \dechex($byte), 2, '0', STR_PAD_LEFT));
}
return $out;
}
function renderBarcodeSection(
\Com\Tecnick\Pdf\Tcpdf $pdf,
array $items,
string $title,
int $sectionIndex,
int $sectionCount,
array $titlefont,
array $textfont,
array $smallfont,
array $style,
bool $square = false,
): void {
$marginLeft = 12.0;
$marginRight = 12.0;
$marginTop = 15.0;
$marginBottom = 12.0;
$page = $pdf->addPage([
'margin' => [
'PL' => $marginLeft,
'PR' => $marginRight,
'CT' => $marginTop,
'CB' => $marginBottom,
],
]);
$pageWidth = (float) $page['width'];
$pageHeight = (float) $page['height'];
$contentWidth = $pageWidth - $marginLeft - $marginRight;
$maxY = $pageHeight - $marginBottom;
$drawHeader = static function () use (
$pdf,
$titlefont,
$smallfont,
$title,
$sectionIndex,
$sectionCount,
$marginLeft,
$contentWidth,
): float {
$pdf->page->addContent($titlefont['out']);
$pdf->page->addContent($pdf->getTextCell(
txt: 'Barcode Types Catalog (' . $sectionIndex . '/' . $sectionCount . '): ' . $title,
posx: $marginLeft,
posy: 10,
width: $contentWidth,
height: 0,
offset: 0,
linespace: 1,
valign: \Com\Tecnick\Pdf\TextVAlign::Top,
halign: \Com\Tecnick\Pdf\TextHAlign::Left,
));
$pdf->page->addContent($smallfont['out']);
$pdf->page->addContent($pdf->getTextCell(
txt: 'Source type list: tc-lib-barcode example/index.php',
posx: $marginLeft,
posy: 16,
width: $contentWidth,
height: 0,
offset: 0,
linespace: 1,
valign: \Com\Tecnick\Pdf\TextVAlign::Top,
halign: \Com\Tecnick\Pdf\TextHAlign::Left,
));
return 22.0;
};
$cursorY = $drawHeader();
foreach ($items as $item) {
$sampleText = formatSampleDataForText($item['code']);
$desc = 'Standard: ' . $item['standard'] . "\n" . 'Use: ' . $item['use'] . "\n" . 'Sample data: ' . $sampleText;
$descTopOffset = 4.5;
$descLineSpace = 1.0;
$barcodeGap = 4.0;
$barcodeBlockGap = 8.0;
while (true) {
$descTopY = $cursorY + $descTopOffset;
$descOut = $pdf->getTextCell(
txt: $desc,
posx: $marginLeft,
posy: $descTopY,
width: $contentWidth,
height: 0,
offset: 0,
linespace: $descLineSpace,
valign: \Com\Tecnick\Pdf\TextVAlign::Top,
halign: \Com\Tecnick\Pdf\TextHAlign::Left,
);
$descBBox = $pdf->getLastBBox();
$barcodePosY = (float) $descBBox['y'] + (float) $descBBox['h'] + $barcodeGap;
$barcodeWidth = -1;
$barcodeHeight = -1;
if (!$square) {
$metrics = $pdf->barcode->getBarcodeObj($item['type'], $item['code'])->getArray();
$ncols = (int) $metrics['ncols'];
$nrows = (int) $metrics['nrows'];
$targetMinBarWidth = 0.65;
$barcodeWidth = (int) \max(1, \min($contentWidth, \round($ncols * $targetMinBarWidth)));
// stacked symbologies keep the module aspect ratio, the other ones use a fixed bar height
$barcodeHeight = $nrows > 4 ? (int) \max(1, \round(($barcodeWidth * $nrows) / $ncols)) : 10;
}
$barcodeModel = $pdf->barcode->getBarcodeObj(
$item['type'],
$item['code'],
$barcodeWidth,
$barcodeHeight,
'black',
[0, 0, 0, 0],
);
$barcodeData = $barcodeModel->getArray();
$itemBottomY = $barcodePosY + (float) $barcodeData['full_height'];
$nextCursorY = $itemBottomY + $barcodeBlockGap;
if ($nextCursorY <= $maxY) {
break;
}
$page = $pdf->addPage([
'margin' => [
'PL' => $marginLeft,
'PR' => $marginRight,
'CT' => $marginTop,
'CB' => $marginBottom,
],
]);
$cursorY = $drawHeader();
}
$pdf->page->addContent($textfont['out']);
$head = '[' . $item['type'] . '] ' . $item['name'];
$pdf->page->addContent($pdf->getTextCell(
txt: $head,
posx: $marginLeft,
posy: $cursorY,
width: $contentWidth,
height: 0,
offset: 0,
linespace: 1,
valign: \Com\Tecnick\Pdf\TextVAlign::Top,
halign: \Com\Tecnick\Pdf\TextHAlign::Left,
));
$pdf->page->addContent($smallfont['out']);
$pdf->page->addContent($descOut);
$pdf->page->addContent($pdf->getBarcode(
type: $item['type'],
code: $item['code'],
posx: $marginLeft,
posy: $barcodePosY,
width: $barcodeWidth,
height: $barcodeHeight,
padding: [0, 0, 0, 0],
style: $style,
));
$cursorY = $nextCursorY;
}
}
function renderNoticePage(\Com\Tecnick\Pdf\Tcpdf $pdf, string $html, array $textfont): void
{
$marginLeft = 12.0;
$marginRight = 12.0;
$page = $pdf->addPage([
'margin' => [
'PL' => $marginLeft,
'PR' => $marginRight,
'CT' => 15.0,
'CB' => 12.0,
],
]);
$pdf->page->addContent($textfont['out']);
$pdf->addHTMLCell(
html: $html,
posx: $marginLeft,
posy: 10,
width: (float) $page['width'] - $marginLeft - $marginRight,
);
}
renderBarcodeSection($pdf, $linear, 'Linear', 1, 3, $titlefont, $textfont, $smallfont, $style, false);
renderBarcodeSection($pdf, $square, 'Square / 2D', 2, 3, $titlefont, $textfont, $smallfont, $style, true);
renderNoticePage($pdf, $notices, $textfont);
$rawpdf = $pdf->getOutPDFString();
$pdf->renderPDF(rawpdf: $rawpdf);
